DC FAST CHARGER

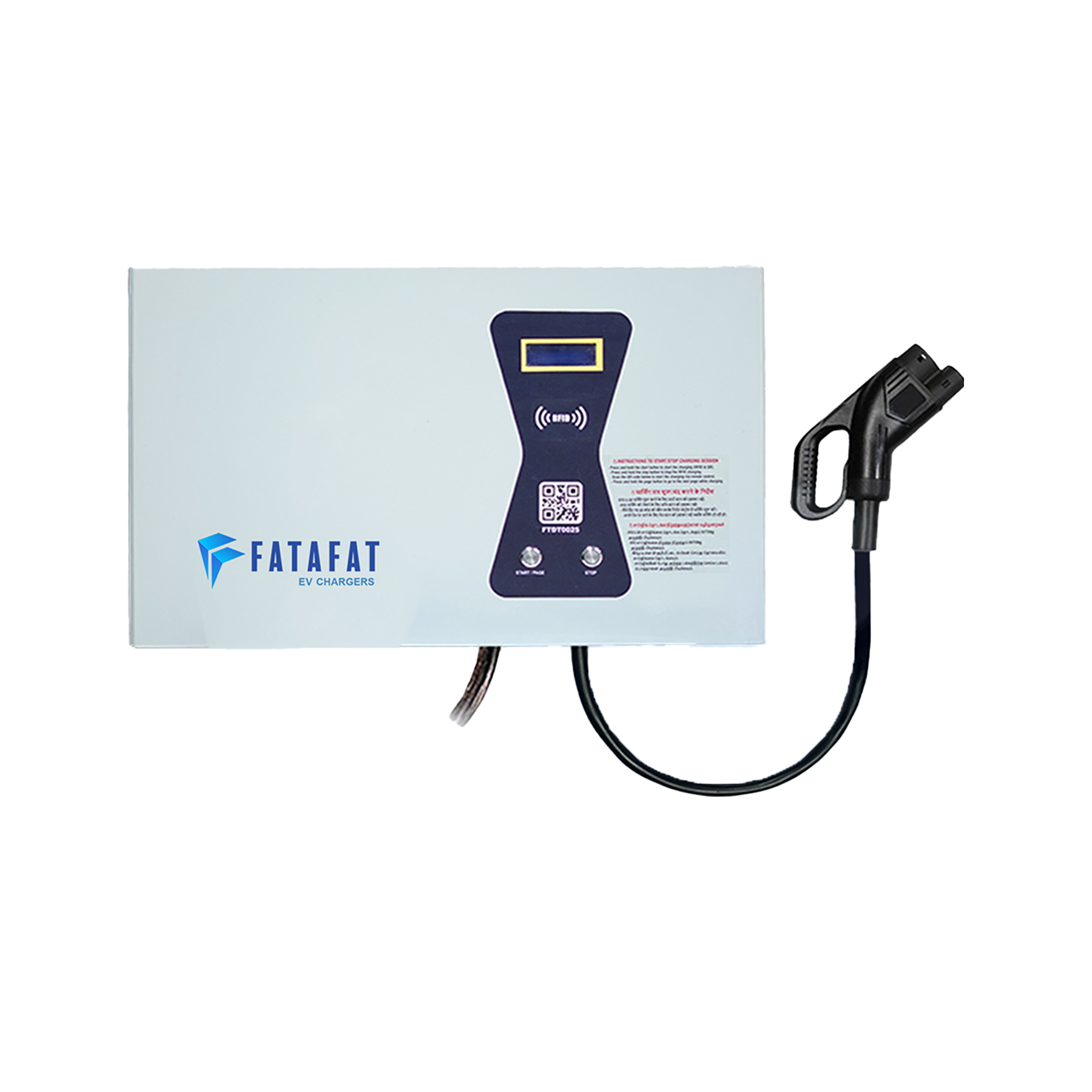

Discover the DC WallBox Charger, a compact and cost-effective solution for EV charging. Featuring a built-in emergency stop and Ethernet communication, it prioritizes safety and connectivity. Users can effortlessly start or stop charging via RFID, QR code, or the Fatafat EV Charging App. With a single-gun configuration and user-friendly app, monitoring vital stats like voltage, current, time consumption, and unit consumption is a breeze on our touch display. Choose from a range of 60-240 kW to suit your needs. Plus, our app allows you to locate, share, and monetize our charger, earning money per hour by making it publicly available.
NABL Certified
Specifications
- AC Nominal Input: 440V ±10%
- Input Current: 170A Max
- Frequency: 50 Hz ± 5%
- Input Power: 20 - 120 kW
- AC Nominal Output: 440V ±10%
- Output Current: 240A Max
- Over Current: 245A
- Output Power: 20 - 120 kW
- Support Language: English
- Charging Option: Standalone
- Visual Indication: Input supply, Error indicator, State of charge
- User Authentication: RFID / QR Scan / App-Based
- User Interface: LED Indicators
- Safety Parameters: Over current, Over Voltage, Under Voltage, Surge Protection, Ground Fault, Over Temperature, Leakage Current Detection
- Energy Meter: Inbuilt energy meter with 1% accuracy
- EVSE to EVCC: IEC61851 - 1 Annex A
- EVSE to CMS: Ethernet
- Ingress Protection: IP 56
- Weight: 120 kg / Approx
- Chargeable Devices: EV Cars
- Connectivity: Ethernet
- Altitude: Up to 2000 meters
- Humidity: 5% to 95% Non-condensate
